VPN vs. SSH Tunneling: A Comparative Performance and Security Analysis

Abstract

Layer-3 VPNs and SSH tunnels are often deployed interchangeably to protect data in transit, without measured evidence of what each costs. We built an automated, single-host testbed of three Linux network namespaces with a custom loss/delay emulator. On it we compared WireGuard, OpenVPN (UDP and TCP), SSH port forwarding and SSH layer-3 tunnelling against an unencrypted baseline over 3–5 randomized trials. We measured throughput, CPU cost, latency, robustness to packet loss and responses to unauthenticated probes, and derived deployment guidelines.

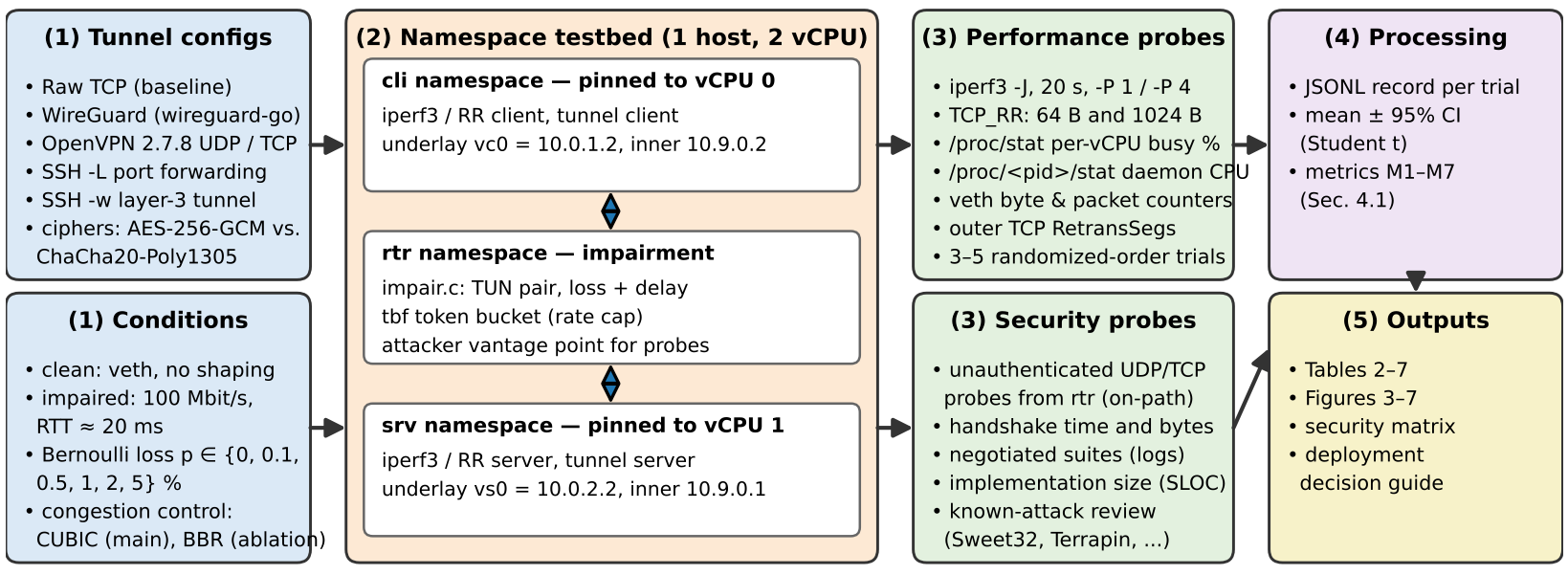

Experimental pipeline: inputs, namespace testbed, probes, processing, outputs — **Pipeline.** Tunnel configurations and network conditions are deployed on a three-namespace testbed, exercised by performance and security probes, and reduced to seven metrics.

Key findings

13×

Per-packet work sets the cost

OpenVPN and SSH -w make about 13× more context switches per MB than WireGuard. Changing OpenVPN's cipher does not change its speed.

28–43%

Meltdown is conditional

With CUBIC every tunnel tracks plain TCP under loss. With BBR, tunnels that carry TCP inside TCP lose 28–43% of their throughput.

0 replies

Silence beats speed

WireGuard and tls-crypt OpenVPN ignore unauthenticated probes. sshd announces its exact version, but SSH -L exposes only one port.

Results at a glance

Configuration	Throughput	Cycles / byte	Δ RTT (64 B)	Setup	Unauth. probe
Raw TCP (baseline)	28.07 Gbit/s	1.3	—	—	—
WireGuard (wireguard-go)	1.58 Gbit/s	19.6	+113 µs	0.09 s	silent
OpenVPN-UDP	727 Mbit/s	52.6	+48 µs	2.25 s	silent (tls-crypt)
OpenVPN-TCP	652 Mbit/s	60.2	+43 µs	2.71 s	silent (tls-crypt)
SSH -L (ChaCha20)	4.10 Gbit/s	10.4	+61 µs	0.44 s	version banner
SSH -L (AES-GCM)	8.60 Gbit/s	4.9	+52 µs	0.45 s	version banner
SSH -w (layer-3)	575 Mbit/s	72.2	+52 µs	0.47 s	version banner

Clean link, one stream, mean of 5 trials on a 2-vCPU VM. Absolute values depend on hardware; see the paper for 95% confidence intervals and limitations.

Figures

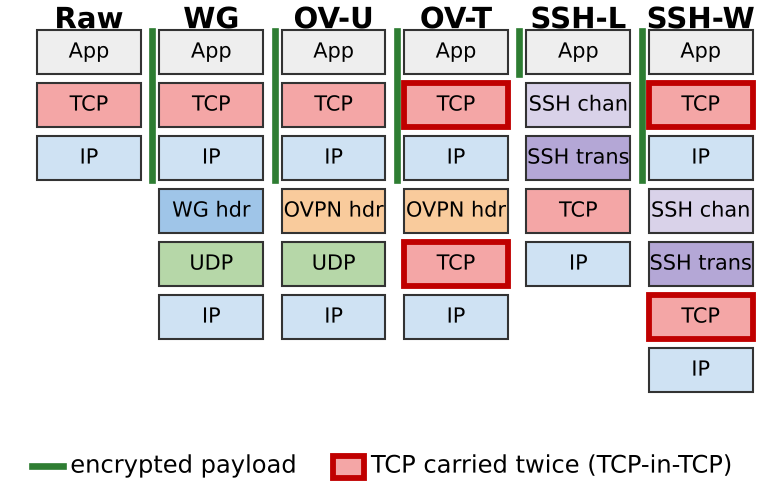

Protocol stacks of each tunnel — **Protocol stacks.** Only OpenVPN-TCP and SSH -w carry TCP inside TCP; SSH -L terminates TCP locally.

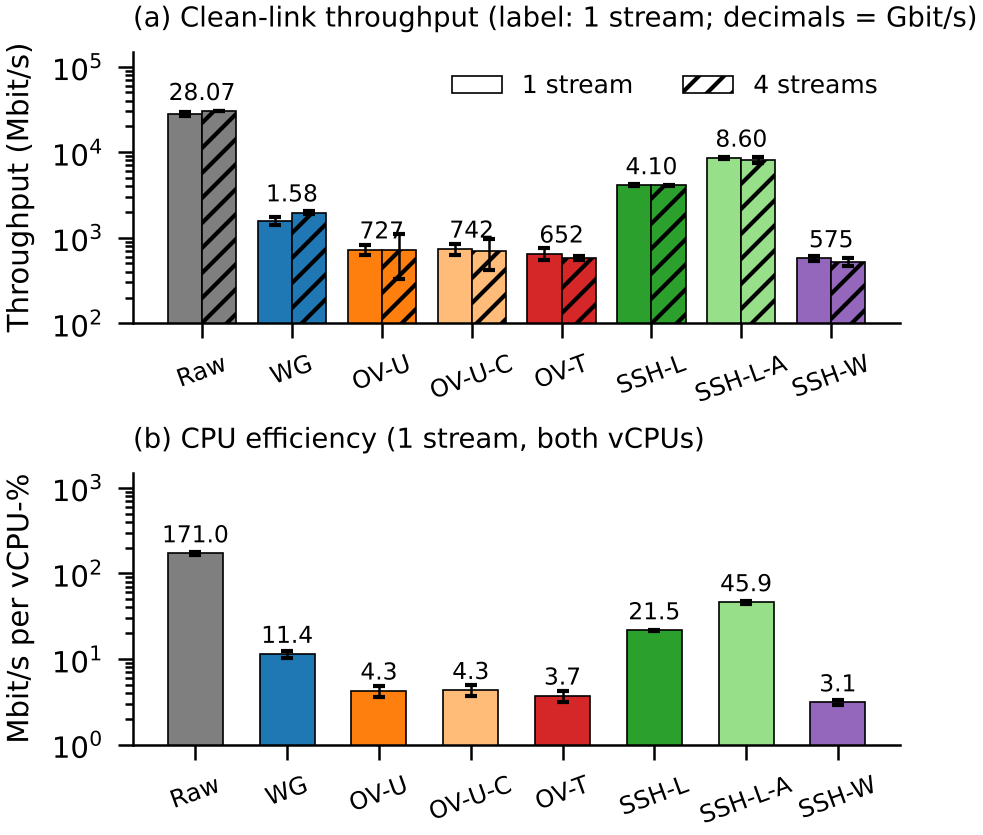

Clean-link throughput and CPU efficiency — **Clean-link efficiency.** Throughput with 1 and 4 streams and throughput per vCPU-%.

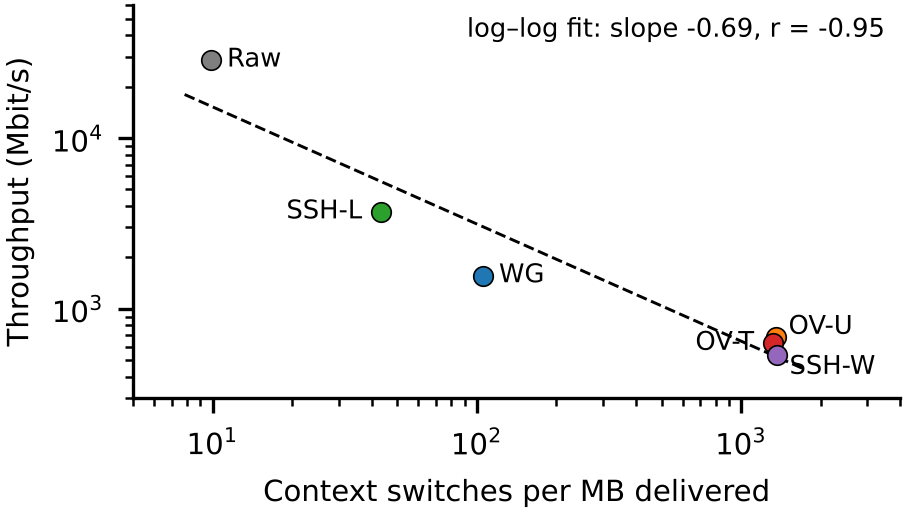

Throughput vs context switches per MB — **Context switches vs. throughput.** Log–log fit r = −0.95 across six configurations.

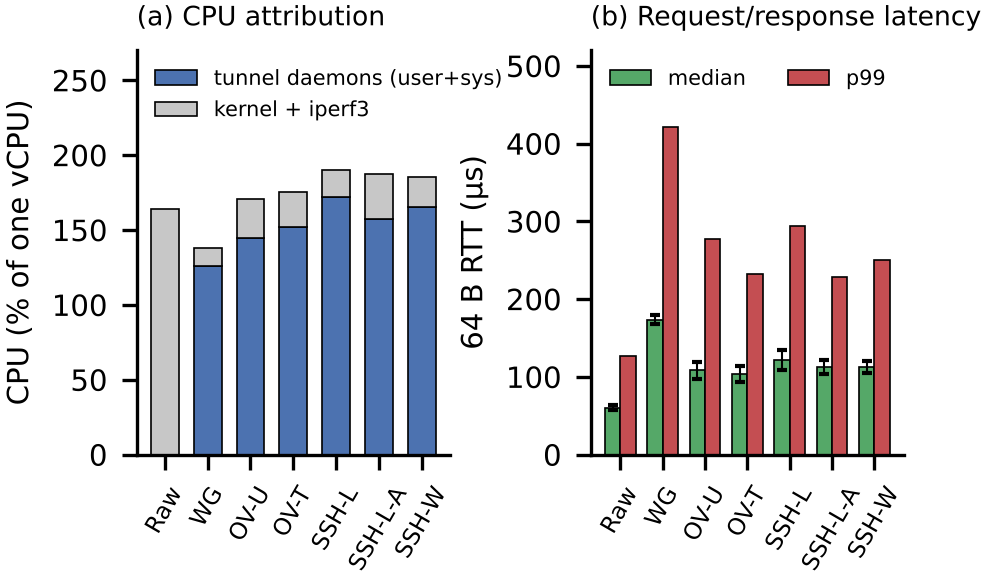

**CPU attribution and latency.** Tunnel daemons dominate CPU; wireguard-go shows the highest tail latency.

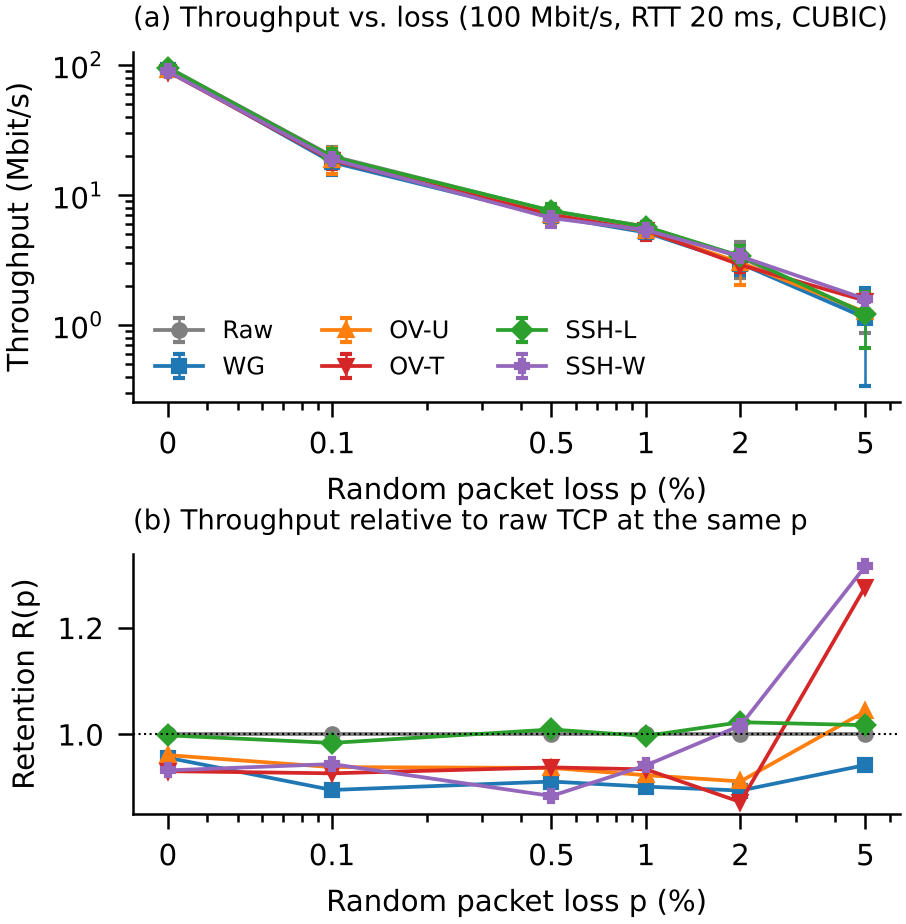

Throughput vs packet loss — **Loss sweep (CUBIC).** Every tunnel follows the 1/√p curve of plain TCP.

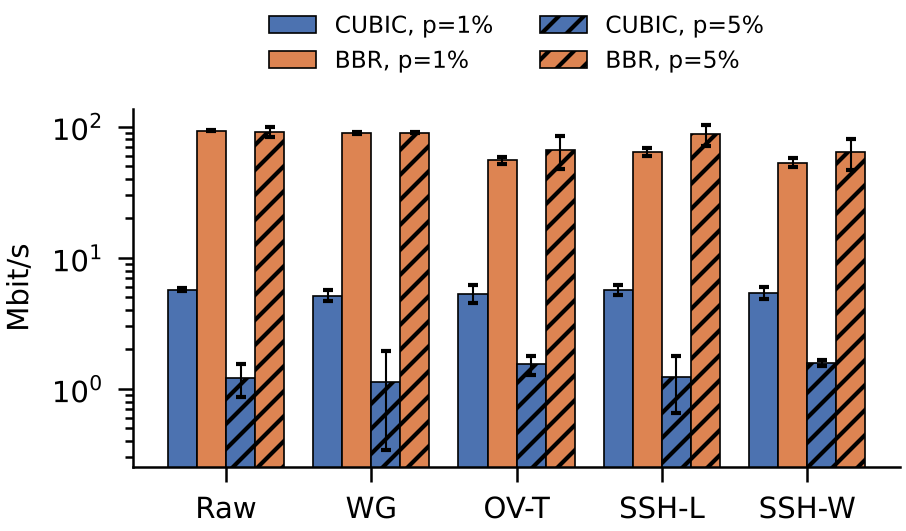

CUBIC vs BBR ablation — **BBR ablation.** With BBR, tunnels that carry TCP inside TCP fall 28–43% behind UDP tunnels.

Citation

@techreport{yakpetrolindo2026vpnssh,
  author      = {Yakpe Trolindo, Hubert},
  title       = {Network and Infrastructure Security: A Comparative
                 Performance and Security Analysis of {VPN} vs. {SSH} Tunneling},
  institution = {University of Central Florida},
  year        = {2026},
  type        = {Course Project Report},
  url         = {https://github.com/cybsecoff31/vpn-vs-ssh-tunnel-benchmark}
}
